HD Projection Rental

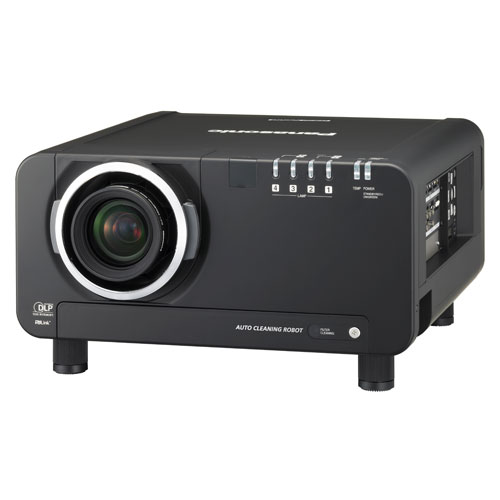

The Panasonic PT-DW10000 HD DLP Projection system rental hire for large venue events.

With 10,000 lumens and 1920 x 1080 resolution, this full high-definition projector can faithfully display HD content. High brightness is assured by a four-lamp system, while dynamic iris technology achieves an outstanding 5,000:1 contrast ratio.

Three-chip DLP technology provides excellent resistance to deterioration due to aging, making the PT-DW10000U an extremely reliable system projector.

A flyware cage is included with this unit.

A full suite of lenses is available for flexible installations, including the following:
ET-D75LE1: 1.5–2.0 zoom
ET-D75LE2: 2.0–3.0 zoom
ET-D75LE3: 3.0–5.0 zoom
ET-D75LE4: 5.0–8.0 zoom
ET-D75LE5: 0.8:1 fixed
ET-D75LE6: 1.0–1.2 zoom
ET-D75LE8: 8.0–15.0:1 zoom

Note: Lenses rented separately.

General
Brightness: 10,000 lumens (four-lamp operation mode)
Resolution RGB: 1,920 x 1,080 pixels (1,600 x 1,200 pixels compatible, compression mode)
Contrast ratio: 5,000:1 (full on/full off, in Dynamic iris 3 mode)
Video: 560 TV lines
Keystone correction range: ~40° (~22° with the ET-D75LE5, ~28° with the ET-D75LE6)
Screen size: 70 – 600 inches, 16:9 aspect ratio (70-300 inches, 16:9 aspect ratio with the ET-D75LE5)

DLP® chip
Panel size: 0.95″ diagonal (16:9 aspect ratio)
Display method: DLP® chip x 3 (R, G, B), DLP® projection system
Pixels: 2,073,600 (1,920 x 1,080) x 3, total of 6,220,800 pixelsLamp
250 W UHMTM lamp x 4 (four lamp system)Lens
Type: Optional powered zoom/focus lenses
Lens shift: Vertical, Horizontal (powered)

RGB input scanning frequencies
Horizontal: 15-100 kHz
Vertical: 24-120 Hz
Dot clock: 20-162 MHz

Formats
Component signal: 480i, 480p, 576i, 576p, 720/60p, 720/50p, 1035/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 1080/60i, 1080/50i, 1080/50p, 1080/60p
Video signal: 15.75/15.63 kHz horizontal, 50/60Hz vertical. (NTSC, NTSC 4.43, PAL ,PAL60 ,PAL-N ,PAL-M, SECAM)

Terminals
Video in: BNC x 1, 1.0 Vp-p
Video out: BNC x 1, 1.0 Vp-p
S-Video in: Mini DIN 4-pin x 1
RGB1/YPBPR in: BNC x 5
RGB2 in: D-sub HD 15-pin x 1
DVI-D in: 24-pin x1, DVI 1.0 compliant, HDCP compatible
Serial in: D-sub 9-pin female x 2 (RS232C x 1, RS422 x 1)
Serial out: D-sub 9-pin male x 1 (RS422 x 1)
Remote 1 in: M3 jack x1 for wired remote control
Remote 1 out: M3 jack x1 for link control
Remote 2 in: D-sub 9-pin female x 1 for external control (parallel)
LAN: RJ-45 (10 Base-T/100 Base-TX) x 1, compatible with PJLinkâ„¢

Power
Supply: 120 V AC, 20 A, 60 Hz
Consumption: 1,450 W (25 W in standby mode with fan stopped)
Power cord length: 9.9”

Environmental
Operating temperature: 32 to 113°F (0 to 45°C)
Operating humidity: 10-80% (no condensation)

Physical
Installation: Front or rear, ceiling or floor
Dimensions: 22.75″W x 25.3″D x 12.6″H (578 x 320 x 643 mm W x H x D)
Weight: 70.5 lbs (32 kg without lens)
