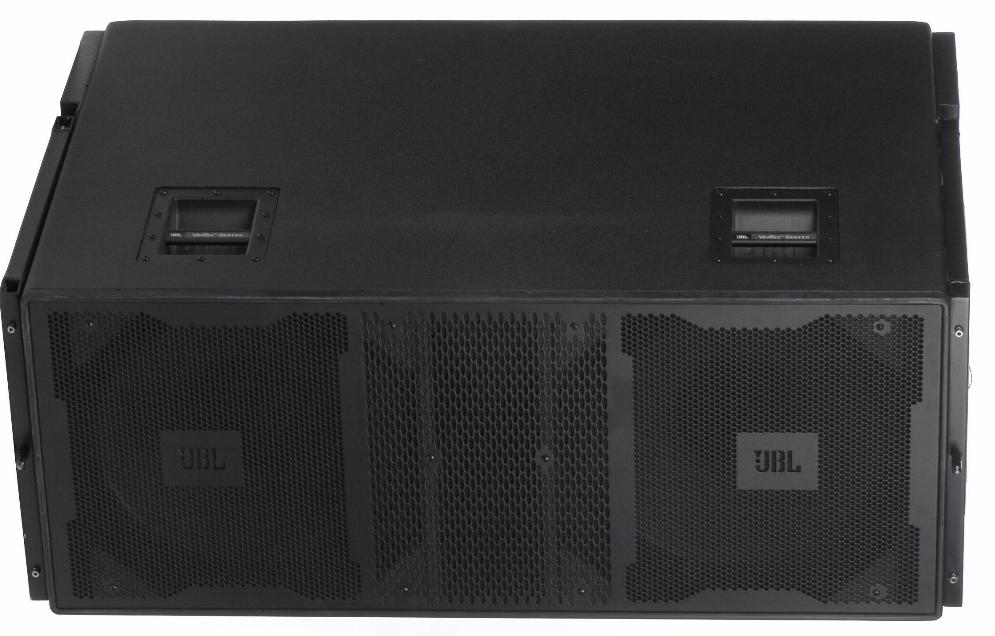

LINE ARRAY ELEMENT
Frequency Response: 28 Hz–75 Hz (±3 dB)
Frequency Range: 26 Hz–80 Hz (-10 dB)
Maximum Peak Output: 138 dB, 3.3 ft
Recommended Bandpass: 26 Hz–80 Hz
Input Power Rating: 4800W Peak (1200-2400 W recommended amplifier power)
Recommended Signal Processing:
dbx Drive Rack, BSS FDS-366, BSS Soundweb and Crown
I–tech Digital System Controllers supported

TRANSDUCERS
Low Frequency: Two 2258H, 18″ diameter, 4″  Dual Coil, Neodymium Differential Drive, Direct Cooled
Nominal Impedance: 8 ohms each transducer
Sensitivity: 98 dB, 1 W, @  3.3 ft (35-120 Hz)

ENCLOSURE
Box Construction: Wedge frustrum 5 degree side angle enclosure. Engineered wood composite structure, DuraFlexâ„¢ finish
Suspension System: Rigid hardware, integral hinge bars nest in rigging frames on box ends. Quick release pins with restraining lanyards.
Grille: Black perforated steel, foam backed
Input Connectors: NL4, 2 each

Key Features:
– Advanced Technology Components: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooledâ„¢ cone transducers
– Advanced Construction Techniques and Hybrid Materials provide exceptionally rigid, lightweight enclosure
– Rugged DuraFlexâ„¢ exterior finish, Weatherized components
– Integrated Suspension System: premium heat-treated alloys provide rigid, reliable hanging arrays designed for vertical orientation at various angles

ACCESSORIES: Suspend with VT4889-AF or VT4889-SF Array Frame.
